Note before order
– This is a Wi-Fi only Curtain Switch, it can’t work with our RF curtain remote. Please don’t buy the extra RF remote to add the remote control, they are not compatible.
– Style 1 curtain switch does not support backlight function, style 2 curtain switch supports backlight function, please confirm before placing an order.
– Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.
Main Features
NEW Function Come – Set Motor Working Time
– You can set the switch operation time 10s-120s quickly in the app according to your need. Then you can open the curtain at the percentage as you need.
– You can set the switch operation time range 10-120 seconds on App, according to your shutter's height, if your shutter is high, so that you don't need to touch several times to complete open or close.
WiFi Smart Curtain Blind Rolling Shutter Switch, Smart Home automatical curtain control system Touch Switch with Glass Panel
– Touch by manual 'OPEN' /'UP' , 'PAUSE'/'STOP', 'ClOSE' / 'DOWN'

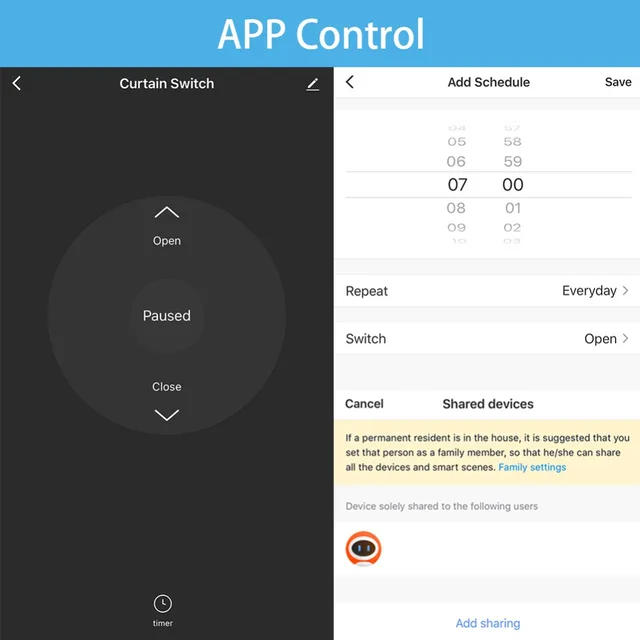

– Mobile App Remote Control, App Timing, Support Both IOS and Android
– Voice Control, Works with Google Home, Amazon Echo Alexa
Hands-free Voice Control Smart Blind Switch
– Compatible with Alexa, Google Home
– With voice control to turn on and turn off the curtains.
Remote Control Anywhere
Remote Control your curtain with your mobile 2G, 3G, or 4G network anywhere.
Set Schedule for when to open, when to close
No light always ON, not bother sleeping
No Lights always be on unless you touch on panel , it will be on for 1 minute only, and if you don't connect WiFi , the indicate led be on, it's a reminder , after you connect WiFi, the led will be off. (But if you don't connect WIFI, the light will be always on.)
Group Function and Device Sharing with App
You can create group in the APP to manage all the blinds in your house and share the device to all your family members.
Installation
– User Manual with 8 pages detailed instruction for how to connect curtain switch, how to connect App.
– 4 languages available, Spanish, French, Germany, and English. Please contact us if you have any special demand for the user guide.
Specification
Input voltage: 100-250 VAC, 50 / 60Hz

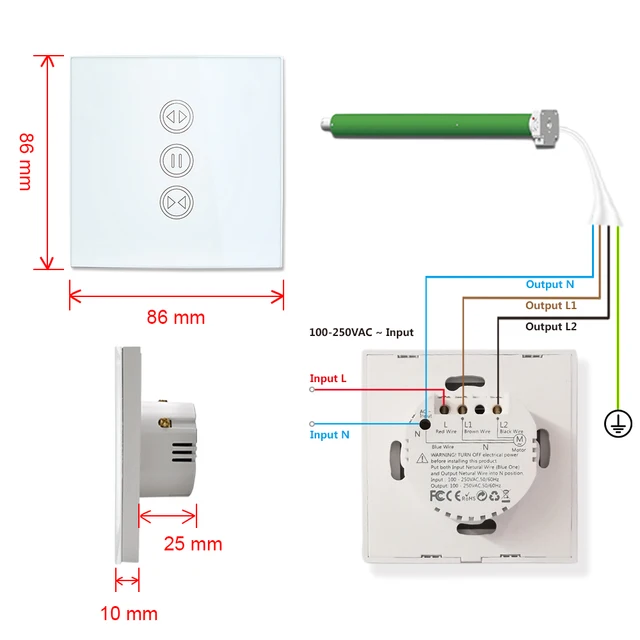

Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: below 600 W
App Name: Smart Life or Tuya App
Wireless Protocol: Wi-Fi 2.4 GHz 802.11 b / g / n (Not support 5Ghz)
Main Chip: REALTKE RTL8710BN Inside
Standby Consumption: below 0.5W
Dimensions: 86mm*86mm*35mm
We have all the accessories you need in the box, you don't need to pay extra cost.
What's in the box?
1* Smart Wi-Fi EU Curtain Switch(White Colour)
1 * 3-Pin Terminal for Netural Wiring
1 * Blue Cable for Netural Wiring
2 * screw kits
1 * User Guide
This switch is WiFi touch switch only, not with RF, it can't work with the RF remote in our store.
Please don’t buy any extra RF remote in our store to work with this WiFi only curtain switch.
